Donut Robot® Mark V GP
Automated fryer for fast production of mini donuts. Capacity 151 dozen/hour, with electric power and heat.
Mark V GP delivers consistent, high-quality mini cake donuts. GP models are specialized for fast production of mini ring donuts, with conveyor flight bars that are closer together than those on standard Donut Robot® models. They feature double 1-inch plungers, which create four mini donuts per each conveyor row. While the automated fryer runs, you can focus on other tasks. There's no easier, more dependable way to make mini donuts.
The Mark V GP is compatible with Insider Ventless systems. If your operation requires mini donuts AND standard donuts, choose a standard Donut Robot® with the mini donut kit.
Types of Donuts
Mini donuts only
Plunger size, each plunger
1 inch (25.4 mm)
Donut size
Up to 2 inch (51 mm)
Capacity
1806 per hour (151dozen) @ 90 seconds frying time
Power
All worldwide voltages, 1 or 3 phase, 6.9 - 9.0 KW
Certifications
UL, CSA, NSF, CE
With an automated fryer, there's no need for turning donuts with sticks, or lifting screens in and out of the shortening. Donuts are deposited, fried and dispensed automatically for finishing like icing, glazing, filling and sugaring. Customers and passers-by are fascinated by the Donut Robot®!
- Electronic temperature controller - holds correct temperature much better than old style thermostats.
- Automatic cake donut depositor, deposits four mini donuts per conveyor row.
- Half-speed switch available for depositing two mini donuts per conveyor row.
- Double mini plunger, 1 inch (25.4 mm) diameter.
- Conveyor bars guide donuts in rows 3 inches apart (76 mm).
- Hopper holds 10 lbs (4.5 kg) batter, volume = 10 quart (9.5 liter).
- Depositor can be adjusted for smaller or larger donuts using a simple dial.
- Adjustable frying time from 60 to 300 seconds.
- Normally requires a ventilation and fire suppression hood indoors - unless used with Insider Ventless system.
See "Related Products" for these and other options.
You can also see Related Products listed with Donut Robot® systems.
- Drain and valve. Drains require a hole in the fryer's supporting table.
- EZMelt filter. Saves time and keeps your shortening cleaner than any other method.
- Filter-Flo Siphon. Can be used instead of drain and valve, to extract and filter shortening.
- Shortening Reserve Tank. Enables you to easily insert shortening as needed.
- RS Roller Submerger System. Enables automated production of ball donuts or cake donut holes about 1½ inches/38 mm in diameter, with even frying and color.
- A regular Donut Robot hopper is required to accomodate the donut hole plunger. You can choose 1-9/16 or 1-13/16 sizes for the plunger, and the hopper must be the same size.

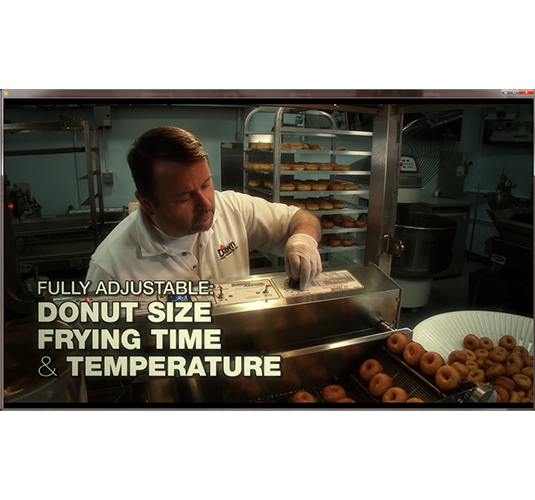

Video shows Donut Robot Mark II and Mark II GP - similar to Mark V GP.
