'RS' Roller-Submerger system

Enables automated production of Cake Donut Holes on Mark II & Mark V, including Gas and GP models.

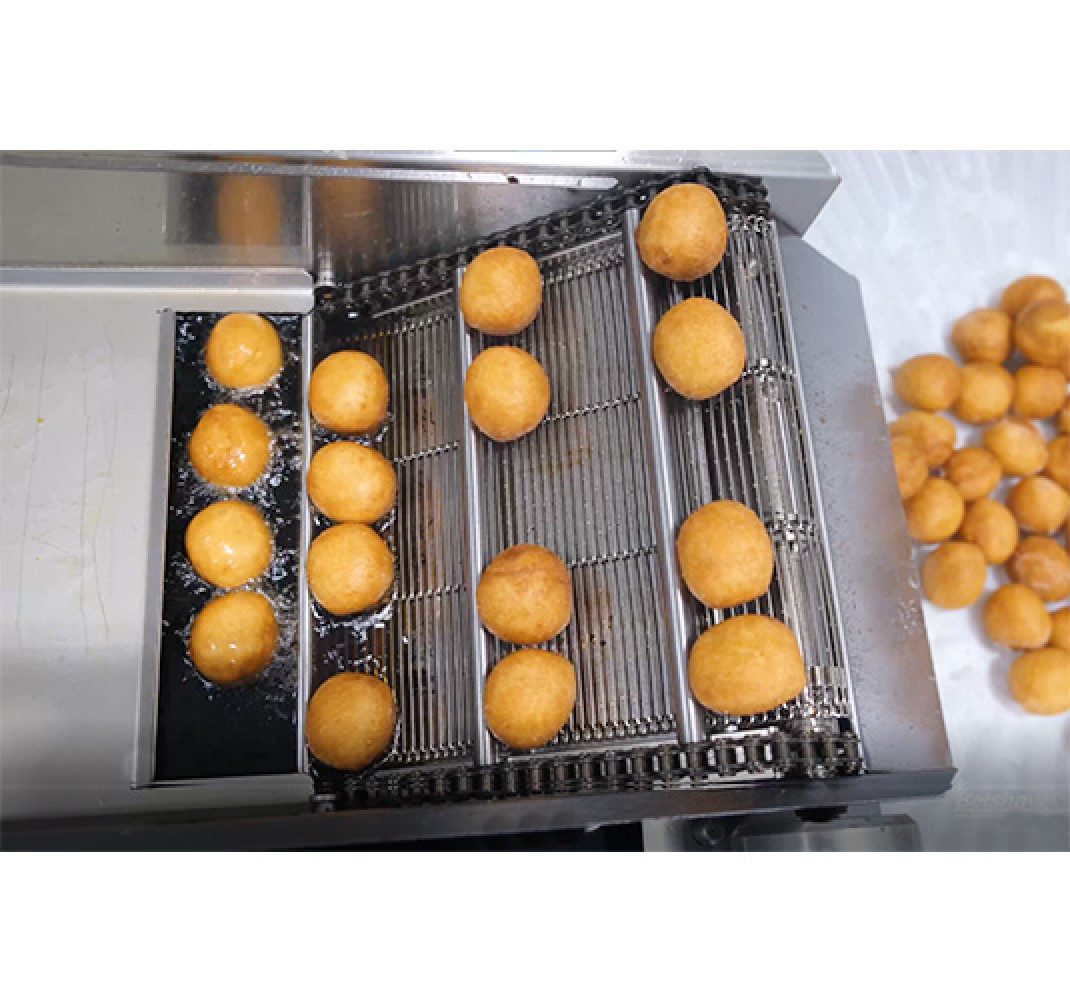

Belshaw's new RS Roller-Submerger system expands the capability of your Donut Robot® fryer. The RS System Deposits, Rolls, and Submerges Cake Donut Holes to provide even frying and color. The RS System includes:

  • Donut Hole Plunger (1-9/16 inch or 1-13/16 inch) – forms 4 Donut Holes per conveyor pocket, approximately 1½ inches in diameter (38 mm), 0.6 oz (17 grams) after frying.
  • Roller-Submerger – guides and submerges the Donut Holes under the shortening.

The RS System is compatible with existing Mark II and Mark V machines, including all Gas and GP models. The Roller-Submerger is easy to set up, and changeover is under 5 minutes.     (** Patent pending)

Part # MK-1080

Roller-Submerger (Mark II & Mark II GP)

Part # MK-1070

Roller-Submerger (Mark V & Mark V GP)

Part # U-1019

Donut Hole Plunger, 1-9/16 inch

Part # U-1024

Donut Hole Plunger, 1-13/16 inch

Production capacity (Mark II)

59 dozen per hour @ 120 seconds frying time

Production capacity (Mark II GP)

76 dozen per hour @ 120 seconds frying time

Production capacity (Mark V)

88 dozen per hour @ 120 seconds frying time

Production capacity (Mark V GP)

113 dozen per hour @ 120 seconds frying time
