624 Donut Fryer (Electric)

Electric-heated, Frying Area 24 x 24 inches (61 x 61 cm).

Belshaw open kettle fryers are the top choice for convenience, flexibility, heat accuracy and long service life. The 624 fryer holds 25 large or 36 medium-size donuts. For that reason you should choose carefully between the 624 and 618L fryer, which is quite close to it in size! The 624 is particularly useful for medium size donuts up to 3¾ inches in diameter (95 mm), because it holds 3 dozen donuts, compared to only 2 dozen for the 618L fryer. The screens used will be different, and so will any baking racks. You'll need 23 x 23 inch screens for this fryer, and baking racks to hold them. Two screens with handles are included with each fryer.

Frying size

24 x 24 inches (61 x 61 cm)

Fryer capacity (large donuts)

25 donuts up to 4½ inch diameter (114 mm)

Fryer capacity (medium donuts)

36 donuts up to 3¾ inch diameter (95 mm)

Production capacity (large donuts)

62 dozen/hour @120 seconds frying time

Production capacity (medium donuts)

90 dozen/hour @120 seconds frying time

Shortening capacity

96 lbs | 13 gallons (44 kg | 49 L)

Power

208-240 Volts, 1 or 3 phase (other voltages available)

Compatibility

Worldwide

Certifications

UL, NSF, CSA, CE

Our electronic temperature controller keeps temperature right on target and is far more accurate than a thermostat!

  • Frying Area 24 inches x 24 inches (61 x 61 cm).
  • Shortening capacity 96 lbs by weight, 13 gallons by volume (44 kg/49 liters).
  • Capacity 25-36 donuts depending on size.
  • Production rate at full capacity, 63-90 dozen donuts per hour @120 seconds frying time.
  • 208-240 Volts, 50/60Hz, 1-phase or 3-phase (other voltages available).

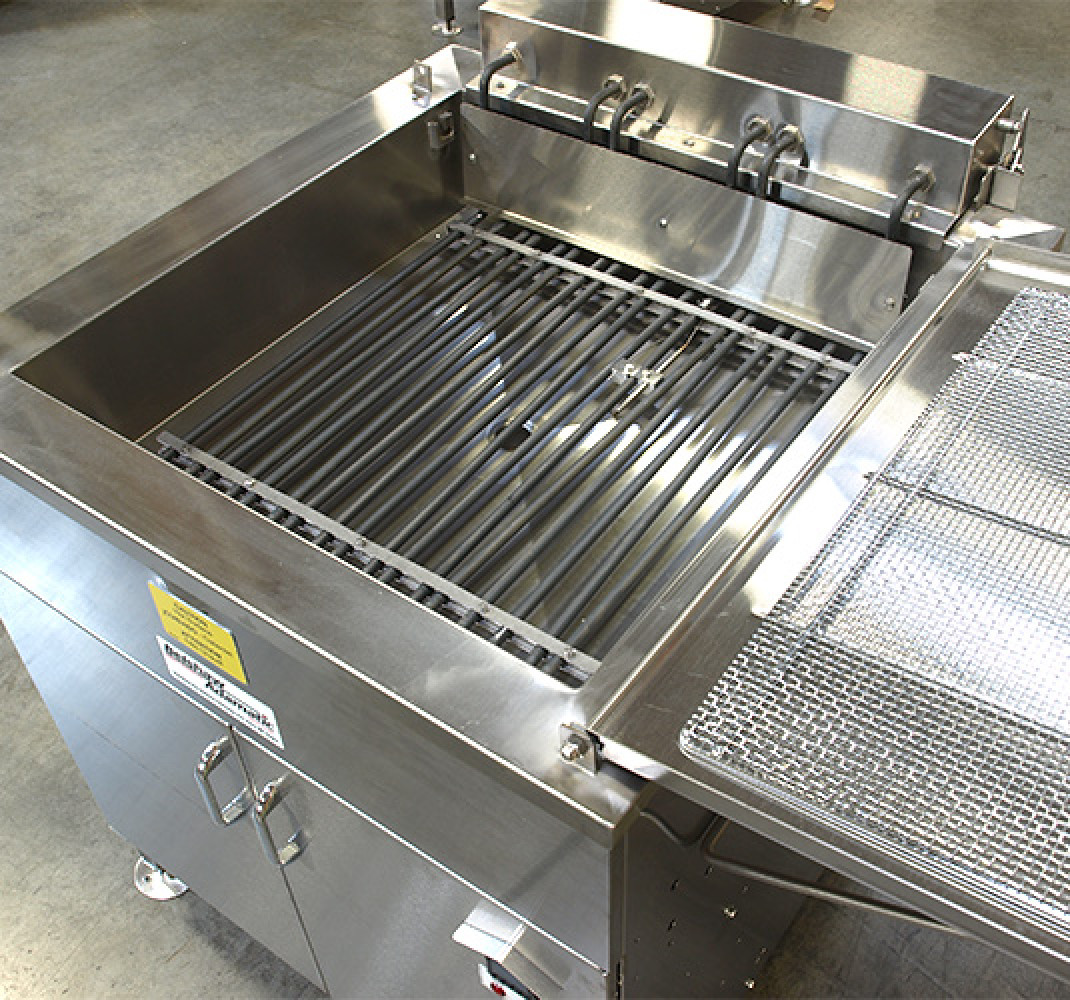

  • Heavy duty elements, tiltable upwards for easy kettle cleanup.
  • Electronic temperature controller for high accuracy and low temperature fluctuation.
  • High-temperature shut-off switch set to approximately 450° F (230° C).
  • Stainless steel cabinet, kettle, and drain tray, with sloping surface around fryer kettle.
  • Adjustable, bolt-down legs.
  • Drain tray on right side of fryer (can easily be repositioned on left side).
  • 2 high quality nickel plated donut frying screens supplied with handles.
  • Heavy duty drain and valve with exterior handle to empty shortening.
  • Accommodates EZMelt24 of SF24 Shortening filter underneath fryer.
  • Accommodates Type B or Type F cake donut depositor.
  • (Optional) Submerger screen #624-1521, recommended for ball shaped donuts and all products that need full frying coverage.
  • Certified to UL-197, CSA C22.2 and NSF-4.
  • CE models available for European Union and other countries.
  • See PDF tab for more specifications.
  • See below for optional accessories for your donut fryer.
  • A ventilation and fire suppression hood is normally required for indoor locations.
