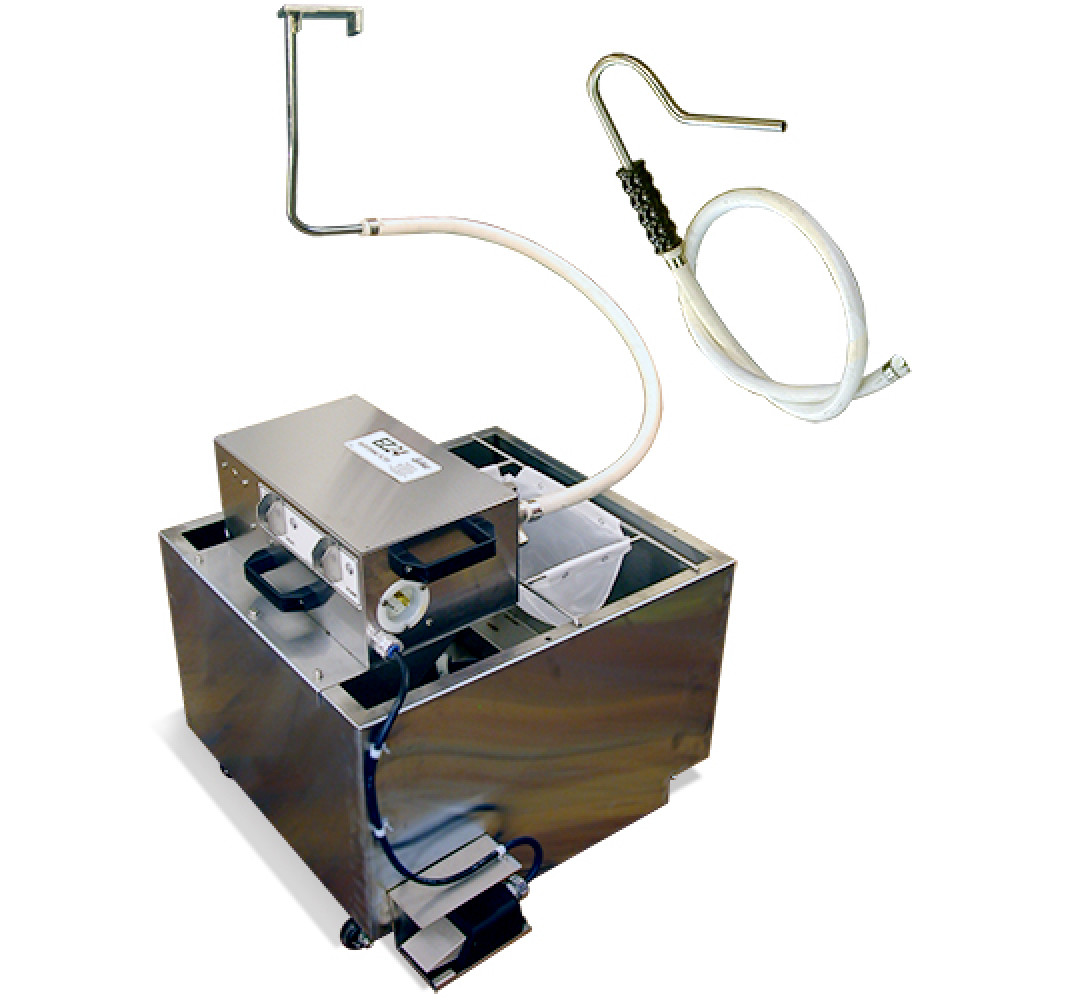

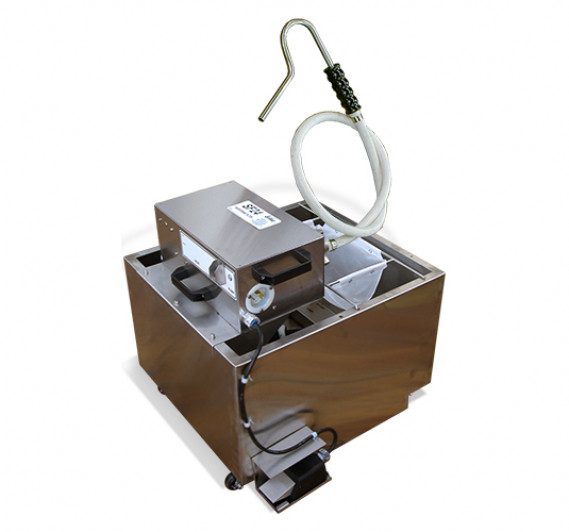

EZMELT24 Shortening Melter-Filter

Fast, effective filtration for 624 and 724CG/FG fryers. Melts, filters and tops up fryer shortening.

The quiet hero of your 624 or 724 system, EZMelt is simple and efficient. It inserts directly below your fryer.

  • Need to top up shortening in the fryer? Push the pedal and it's done.
  • Want to add a solid block of shortening? Put the cube on the cube cutter.
  • Time to filter out debris and fine particulates? 1 -2 minutes and it's over.
  • Want to empty the filter mesh? Just tip the contents into any waste container.

The EZMelt filtration system is the only filtration system recommended if you use Trans Fat-free shortening! Belshaw's SF models filters do not heat shortening and can clog inside the pump.

Use with

624, 724CG-FG





  • Can be used with all standard shortening products, including Zero Trans Fat shortening
  • Heats shortening to 225°F/107°C.
  • Includes a long-life synthetic filter screen. Screen needs replacement once per year under normal conditions.
  • Pumps shortening to the fryer on demand.
  • Refills shortening with push of a foot pedal.
  • 2 hoses included as standard equipment
    • Fill Hose - Connects to your Belshaw Open Kettle or Donut Robot fryer (must specify which).\
    • Rinse Hose - for flushing debris while draining and filtering fryer.
  • Cube cutter for fast melting of solid shortening blocks up to 50lbs (22.7kg).
  • Hand held rinse hose with heat resistant handle.
  • Element tilts up for easy tank cleaning. The entire tank is easily removeable.
  • High-temperature safety cut-off switch.
  • Mobile on casters.
  • 120V or 240V, 50 or 60 Hz, 1-Phase.
  • Certified by ETL to NSF Std 4, CSA C22.2, and UL 1889.
