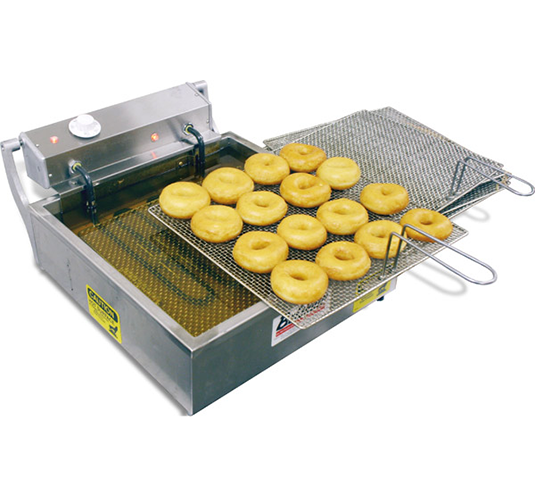

616B Donut Fryer

Compact, dependable, easy to use fryer 16 x 16 inches (41 x 41 cm).

If a fryer could become your best friend, this would be the one! A small, easy-to-use, almost indestructible donut fryer that will serve you for years and years. With a capacity of 16 average size donuts, it offers the best possible use of space for the amount that it produces. For Donuts, Loukoumades, Hushpuppies, and almost anything that fries.

Frying size

16 x 16 inches (41 x 41 cm)


16 standard donuts

Max production

40 dozen/hour @ 120 seconds frying time


Electric (208 or 240V)





For cake donuts, you can use a handheld donut depositor such as Belshaw's Type K Donut Depositor (for ring donuts only).

For more cake donuts, we recommend the Cut-N-Fry which includes our versatile Type N hand-crank depositor.

For yeast raised donuts, you may need 20 or more screens.

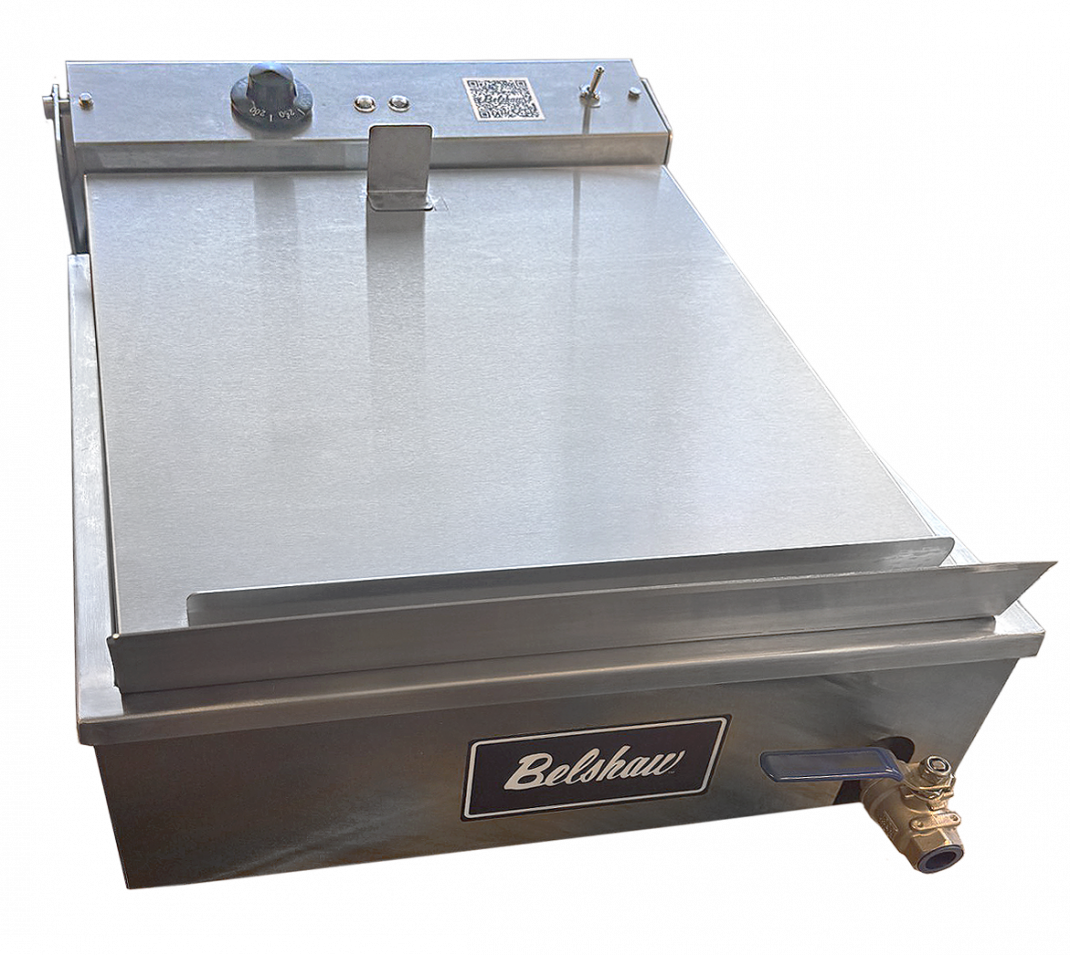

  • Supplied with a cover which doubles as a convenient, sturdy drain tray.

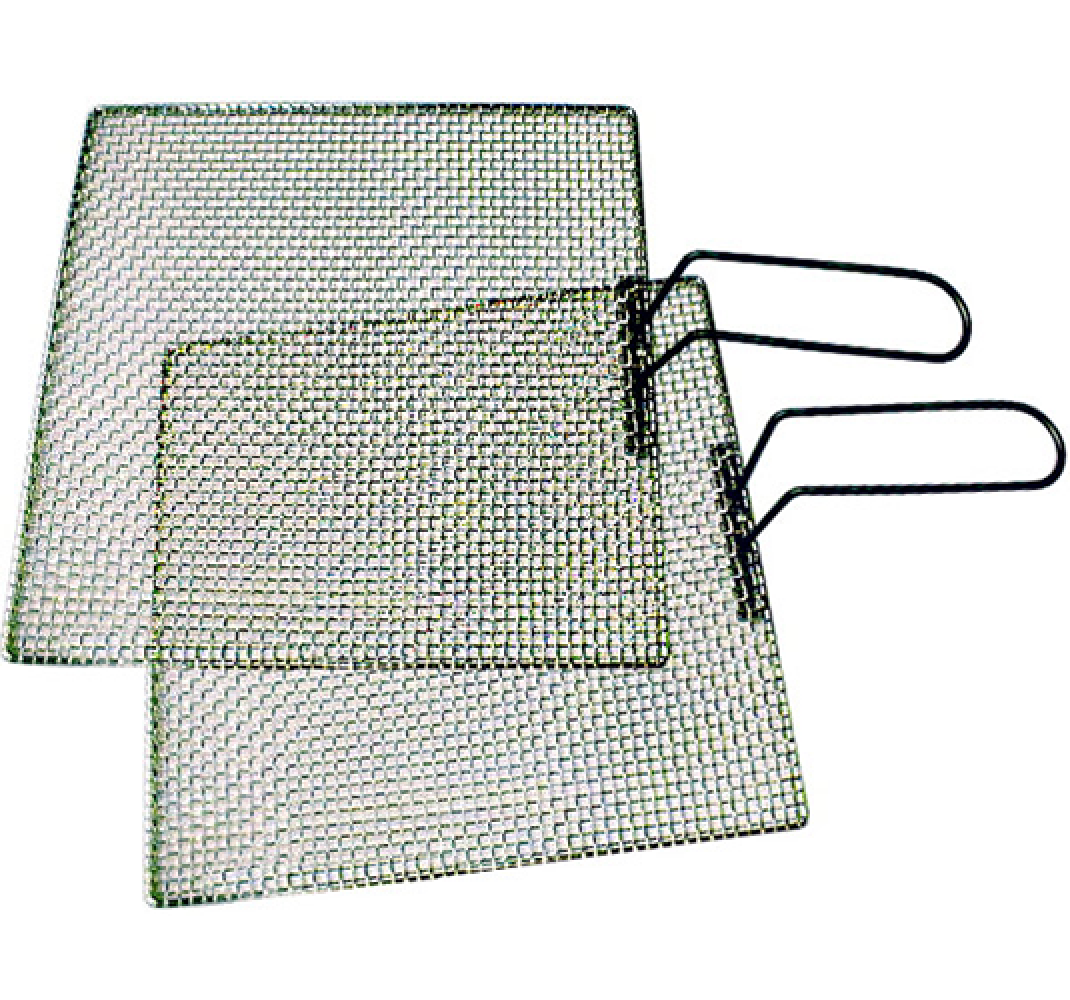

  • Supplied with two Frying Screens with handles.

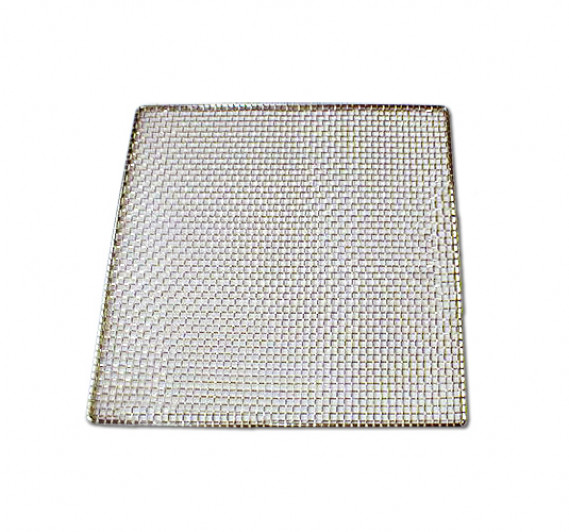

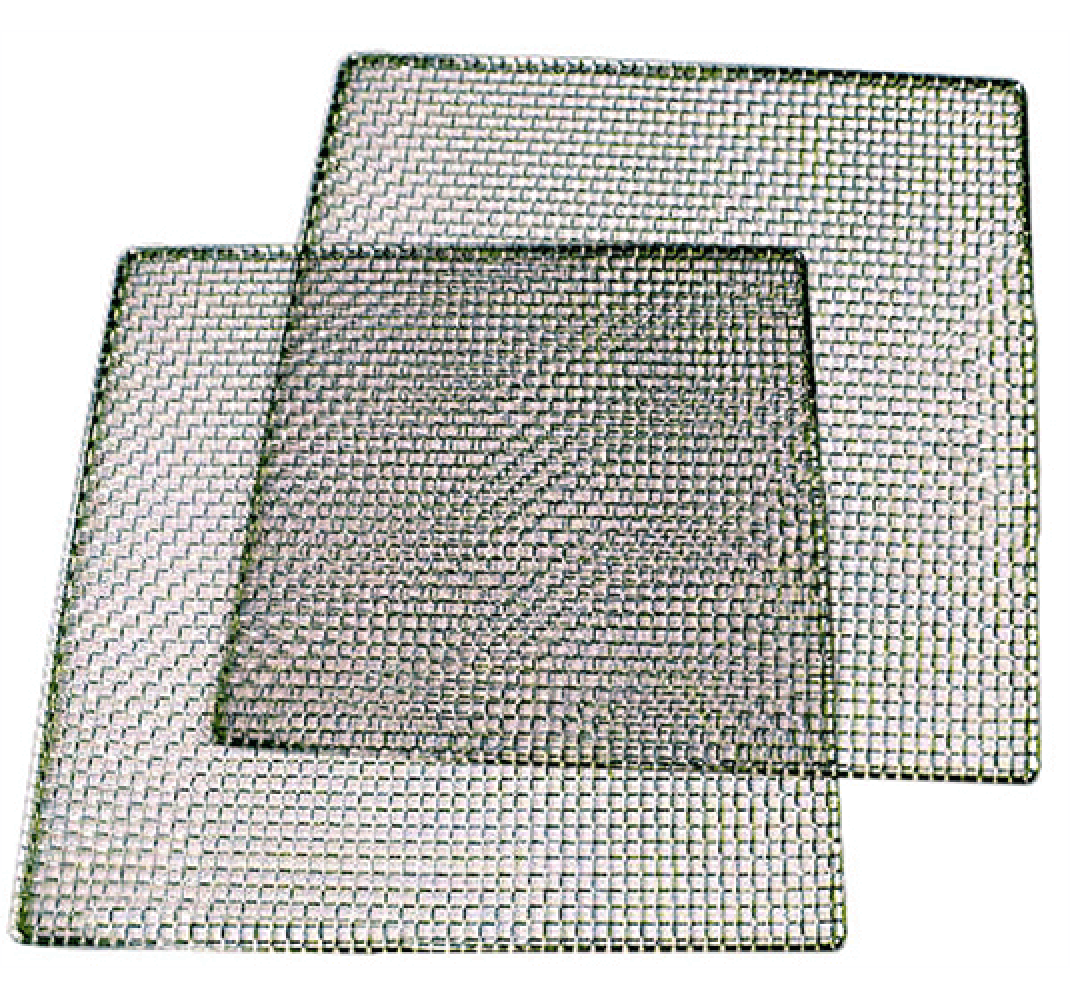

  • For yeast raised donuts, you may need 20 or more screens. Screen handles may get in the way when proofing. If so, choose a set of detachable screen handles.
  • Frying Area 16 inches x 16 inches (41 x 41 cm).
  • Shortening capacity 33 lbs by weight, 4.5 gallons by volume (15 kg/17 liters).
  • Capacity 16 standard donuts.
  • Production rate at full capacity, 60 dozen donuts per hour @120 seconds frying time.
  • 208-240 Volts, 50/60Hz, Single phase (other voltages available).

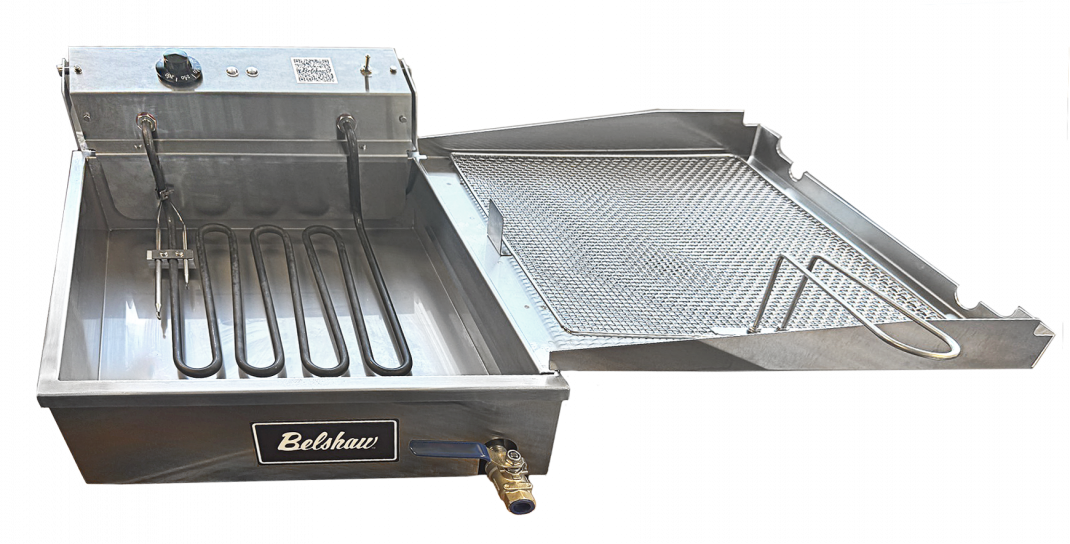

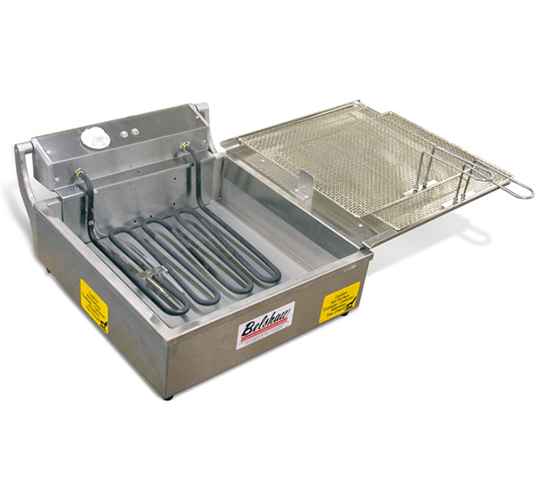

  • Heavy duty elements, can be tilted upward for easy kettle cleanup.
  • Thermostat temperature control.
  • Stainless steel cabinet, kettle, and drain tray.
  • For filtration, we recommend our Filter Flo Siphon and a container that cannot leak, such as a bowl or pan. The fryer has no drain.
  • (Optional) Submerger screen Part # HP-1004.
  • ETL certified to UL-197, CSA C22.2 and NSF-4.
  • CE models available for European Union and other countries.
  • See PDF tab for more specifications.
  • See below for optional accessories for your donut fryer.
  • A ventilation and fire suppression hood is normally required for indoor locations.
