HI18F Icer

Quickly applies icing to an entire screen or pan of 24 donuts. Upgraded in 2022 for improved efficiency and ergonomics.

The HI18F high production icer comes into its own when you are icing a lot of donuts! A screen full of donuts takes less than a minute to load onto the icer, coat with icing, and place back on a rack. Because of its efficiency, the HI18F and larger HI24F are frequently used in large bakeries, where you can find 5 or more working together - one with vanilla icing, one with chocolate, another with strawberry, maple, etc.

  • The icer replicates the upside down dipping motion of icing by hand, produces a clean finish.
  • The icing is heated from underneath by a Heating Panel that transfers heat to the Icing Pan, which holds the icing.
  • Heat is regulated by an electronic temperature controller.
  • Temperature is measured by a temperature probe which is attached to the icing pan.
  • HI18F icer is compatible with Century Midsize C6-16 and C10-16 systems, and with Donut Robot® Mark VI.

2022 UPGRADES

  • New front panel provides bump protection & easier access. The hinged front panel protects the icer’s controls and makes swapping icing pans easier and faster.

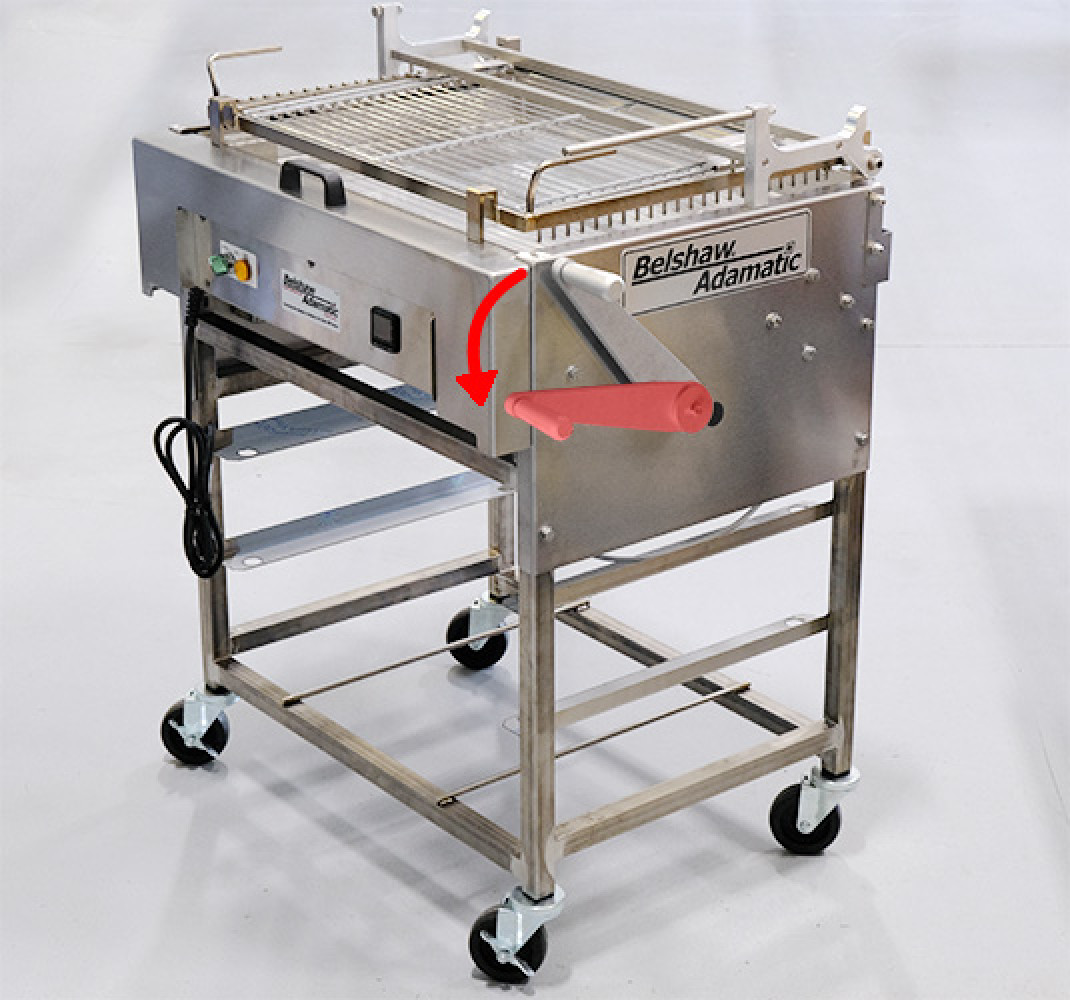

  • Redesigned lift mechanism requires minimal effort. The lift handle is ergonomically placed and the mechanism operates smoothly every time.
  • Reversible Lift Handle can be placed on either side - or both sides. Enables 1 person to work between 2 icers and operate them both more efficiently.
  • New drip tray accessory, keeps drips off the floor (optional).
  • Easier to load, unload & clean. The heating panel and icing pan are locked in position while in use. The icing pans are quick to insert and remove. The heating panels can be removed quickly when cleaning.

Screens for HI18F

Part # SL200-0004 Glazing Screens 17 x 25 inch

Part # HI18-0001

Extra icing pan

Part # HI18-1300

Extra heating panel (120 Volt)

Part # HI18-1300-240CE

Extra heating panel (240 Volt)

Compatibility

Worldwide, 120 Volts or 208-240 Volts

Certifications

UL, CSA, NSF, CE

Approximate capacity in regular use

120 dozen donuts/hour

An extra Icing Pan holds icing ready to slide into your HI18F icer. Saves time and saves effort.

When you have several icing flavors, extra Icing Pans save time and effort. When you are ready to switch from one icing flavor to another, you have a pan full of icing ready to slide into the icer. You don't have to clean out the first icing flavor and fill with a second flavor, because it's already done.

  • We recommend one Icing Pan for each flavor icing.
  • The icing can be pre-warmed so that you can use it right away. You can do that using an extra HI18 Heating Panel.
  • Alternatively you can heat the Icing Pan with icing in a proofer or oven, but the Heating Panel is convenient because the proofer and oven are usually needed for other things.
  • Part # HI18-0001     Extra Icing Pan for HI18F

An extra Heating Panel is the simplest way to pre-warm icing ready for use in your HI18F Icer. Saves time and streamlines your workflow.

An extra Heating Panel pre-warms icing right in the Icing Pan, ready for quick changeover from one flavor to another in the Icer.

  • It's worth having one Icing Pan for each flavor icing. And you will want to preheat the icing before using it in the Icer. That's where the extra Heating Panel comes in. The Heating Panel pre-warms the icing, so it's ready right away.
  • There are alternative ways to warm icing. You can put an Icing Pan with icing into a proofer or an oven to warm up, for instance. But the Heating Panel is a good solution, because the proofer or oven is probably needed for other things.
  • You can store both Heating Panel and Icing Pan in the shelves right under your HI24F icer. Or you can put them anywhere the Heating Panel can be plugged in.
  • Part # HI18-1300:   Heating Panel for HI18F (120V)
    Part # HI18-1300-240CE:   Heating Panel for HI18F (240V)
