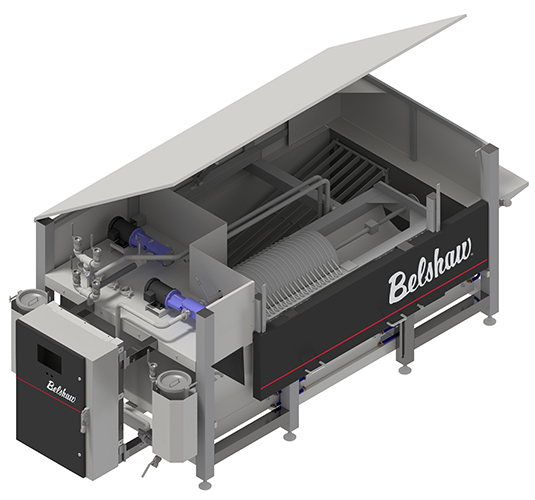

Apex 1300 Industrial Shortening Filter Melter (IFM)
IFM melts, filters and holds up to 720 gallons of shortening.
It can deliver or filter up to 22 gallons per minute to keep your shortening at the optimal quality level. This advanced piece of equipment is fully automated and controlled via touchscreen, allowing you to melt, fill, and drain your fryers with the touch of a button.
- Fully automated and controlled via touchscreen
- Stainless steel construction simplifies the cleaning process
- Lightweight plated aluminum filter plates
- Ability to filter up to four fryers
- Integrated hot shortening plate and frame filter process ensures optimal shortening quality and consistent contaminant removal
- Access lid raised or lowered with a touch of a button for easier cleaning access
- Easy to lift dual canister pre-filters allow for nonstop particulate filtering and filtration pump protection
- Compatible with Belshaw and non-Belshaw fryers
- Bulk fill feature is standard for pre-heated shortening
- Provisions for cubed shortening
Technical Components
Two 22gph 2HP pumps for circulation and filtration
Technical Components
9” HMI touchscreen with fully integrated maintenance and troubleshooting schedules
Electrical Specs
480 V, 3 PH, 50/60 Hz, 28.8 A, 23.9 kW
Dimensions
Length: 173” (4.4 m), Width: 76” (1.9 m), Height: 65” (1.6 m)
Certification
UL 508A and BEAG Listed
